China Diesel Engine Assy manufacturer

Original Deutz TCD2012 L04 2V Engine 2400 Rpm 103kw with inline turbocharging

Product Details:
Place of Origin: Guangdong, China
Brand Name: MT
Certification: CE Certificate
Model Number: Deutz TCD2012 L04 2V Engine
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Packaging Details: Neutral Packing or Original Packing
Delivery Time: 2-5 working days
Payment Terms: T/T, Western Union, MoneyGram, Paypal, Pingpong, Xtransfer, Alipay, Wechat
Supply Ability: 10000

Detail Information

Video Check: Provided Test Report: Provided
Warranty: 6 Months Application: Deutz TCD2012 L04 Engine
Quality: 100% Tested Weight: 400kg
Part Name: Deutz TCD2012 L04 Engine Condition: New
Port: Dalian,Ningbo,Guangdong
Highlight:

Inline Turbocharging TCD2012 L04 2V Engine

,

2400 Rpm Deutz TCD2012 L04 2V Engine

Product Description


DEUTZ TCD 2012 L4 ENGINE
4-cylinder engine with inline turbocharging,oil-cooled or optionally with an integrated cooling system. Also available with water cooling and charge air cooling.
The compact engine design and an optional PTO drive reduce the installation costs and increase the number of applications.
Best cold starting properties even under extreme conditions.
The engines in the power range < 56 kW meets to the US EPA Tier 4 i.
The robust engine design allows worldwide operation even with high sulphur fuels.
All parts for maintenance on one side of the engine, long oil change intervals and easy changing of engine fluids reduce the running costs and increase the availability of the machinery.
An efficient injection system and optimized combustion ensure optimum engine performance at low consumption.


Technical data
Emission norms EU IIIA, US T3
Number of cylinders 4
Bore 101 mm4 in
Stroke 126 mm5 in
Displacement 4 l247 cu in
Maximum nominal speed 2400 rpm
Power output 88 kW118 hp
at speeds 2400 rpm
Max. torque 420 Nm310 lb/ft
at speeds 1600 rpm
Min. idling speed 900 rpm
Specific fuel consumption 216 g/kWh0.36 lb/hph
Length 791 mm31.1 in
Width 628 mm24.7 in
Height 823 mm32.4 in
Weight 400 kg882 lb

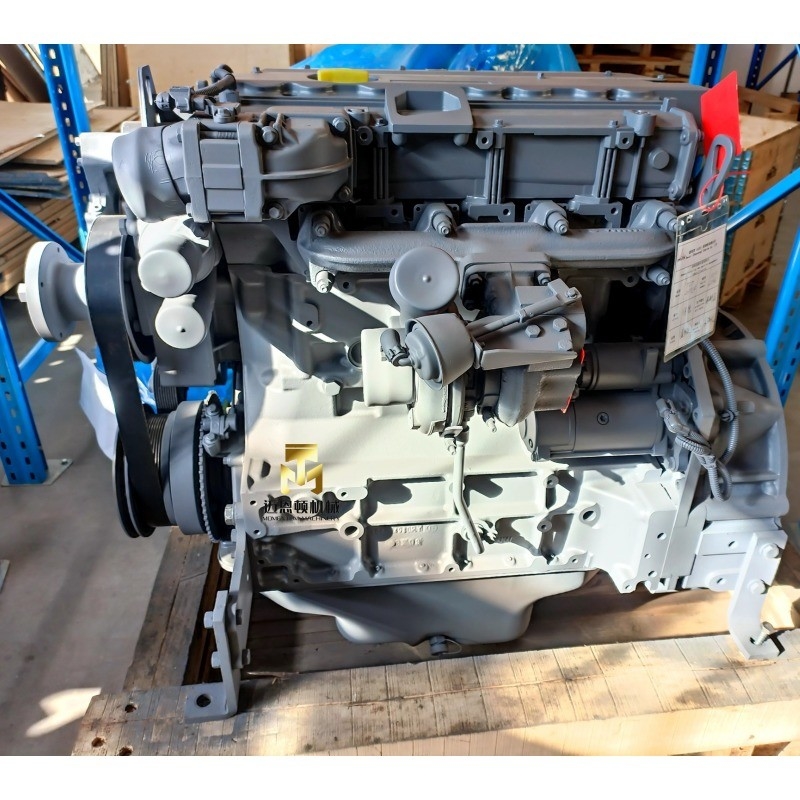

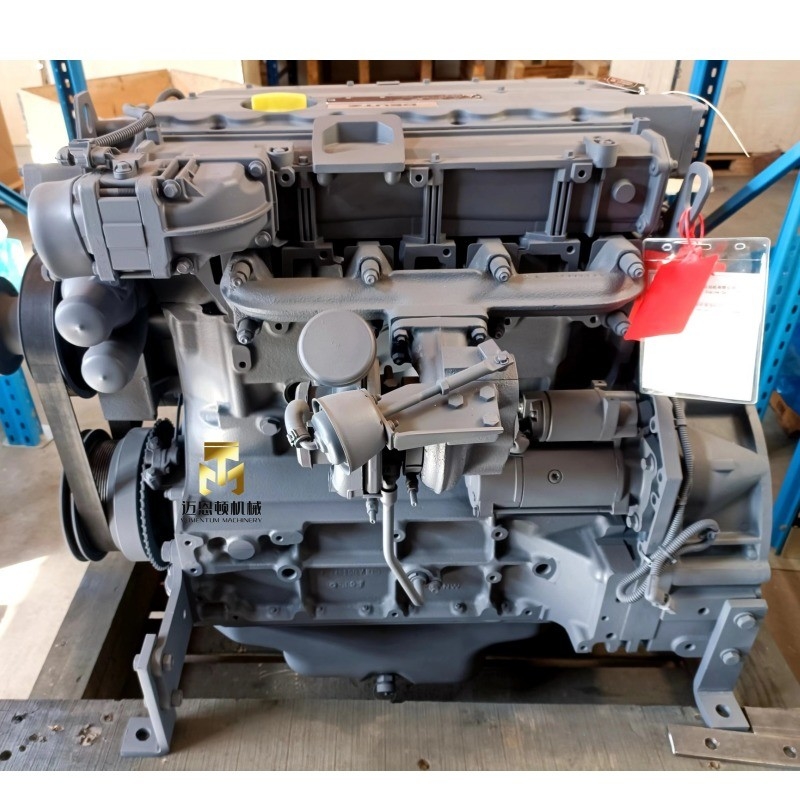

Original Deutz TCD2012 L04 2V Engine 2400 Rpm 103kw with inline turbocharging 0
Original Deutz TCD2012 L04 2V Engine 2400 Rpm 103kw with inline turbocharging 1
Original Deutz TCD2012 L04 2V Engine 2400 Rpm 103kw with inline turbocharging 2

  • Original wooden box
  • Neutral wooden box

Original Deutz TCD2012 L04 2V Engine 2400 Rpm 103kw with inline turbocharging 3

Original Deutz TCD2012 L04 2V Engine 2400 Rpm 103kw with inline turbocharging 4

  • 100% refund for wrong deliveries.(or we will resend the correct goods to you asap.)
  • 30% deposit supported. Balance due after customers inspection via video/photo.
  • 24/7 online support.
  • 24 to 48 hours will orders be processed.
  • 1 piece MOQ of some parts.
  • 6 months warranty for diesel engine and some parts.

Shipment

Small cartons,
<100kg

Worldwide DHL, FEDEX, UPS, ARMAX, YANWEN, SHUNFENG
(Shipping time 3-12 business days)
Pallets or wooden box, >100KG Worldwide

By sea (Shipping time 18-60 days)
By air (Shipping time 4-12 business days)

Pallets or wooden box, >100KG

Tajikistan, Belarus, Russia, Kazakhstan, Kyrgyzstan, Pakistan, Mongolia, Uzbekistan


By Truck (Shipping time 15-30 days)
Pallets or wooden box, >100KG Tajikistan, Belarus, Russia, Serbia,Turkey,
Kazakhstan, Poland, Germany,Kyrgyzstan, Hungary,Iran, Laos, Uzbekistan
By Train (Shipping time 3-16 days)
