Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | MT |
| Certification: | CE Certificate |
| Model Number: | DEUTZ TD2011 L04 engine assy |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 piece |
| Packaging Details: | Neutral Packing or Original Packing |
| Delivery Time: | 2-5 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, Paypal, Pingpong, Xtransfer, Alipay, Wechat |
| Supply Ability: | 10000 |
|
Detail Information |
|||
| Video Check: | Provided | Test Report: | Provided |
|---|---|---|---|
| Warranty: | 6 Months | ApplicationAL: | Industrial Equipment Construction Machines |
| Material: | Metal | Quality: | 100% Tested |
| MOQ: | 1 Piece | Packing: | Neutral Packing Or Original Packing |
| Weight: | 269g | Part Name: | DEUTZ TD2011 L04 Engine Assy |
| Condition: | New | Port: | Dalian,Ningbo,Guangdong |
| Highlight: | DEUTZ TD2011 L04I Diesel Engine Assy,55KW 2400RPM DEUTZ TD2011 L04I,2400RPM 74HP TD2011 L04I Diesel Engine |
||
Product Description

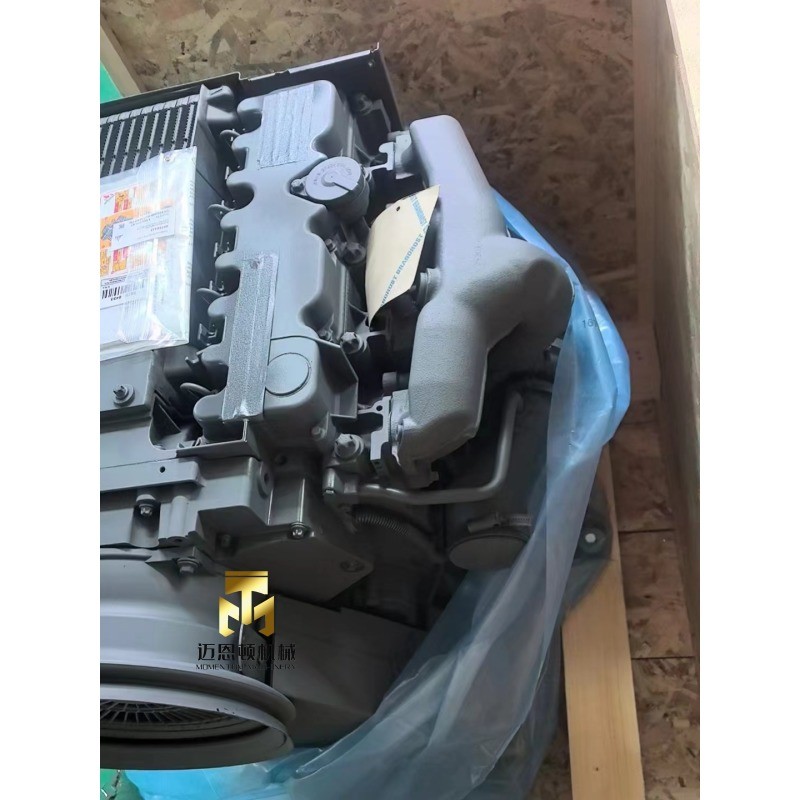

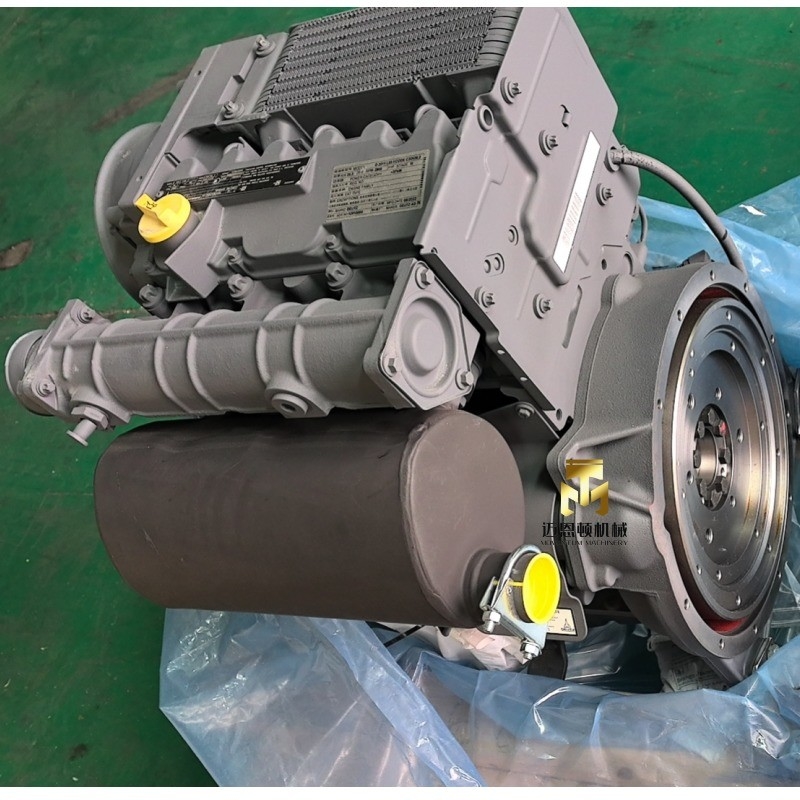

DEUTZ TD 2011 L4 I ENGINE
4-cylinder engine with inline turbocharging,oil-cooled or optionally with an integrated cooling system. Also available with water cooling and charge air cooling.
The compact engine design and an optional PTO drive reduce the installation costs and increase the number of applications.
Best cold starting properties even under extreme conditions.
The engines in the power range < 56 kW meets to the US EPA Tier 4 i.
The robust engine design allows worldwide operation even with high sulphur fuels.
| Technical data | |
| Emission norms | EU IIIA, EU II, US T2, US T3 |
| Number of cylinders | 4 |
| Bore | 96 mm |
| Stroke | 125 mm |
| Displacement | 3.6 l |
| Maximum nominal speed | 2600 rpm |
| Power output | 57.6 kW |
| at speeds | 2600 rpm |
| Max. torque | 240 Nm |
| at speeds | 1600 rpm |
| Min. idling speed | 900 rpm |
| Specific fuel consumption | 233 g/kWh |
| Length | 722 mm |
| Width | 545 mm |
| Height | 724 mm |
| Weight | 267 kg |
